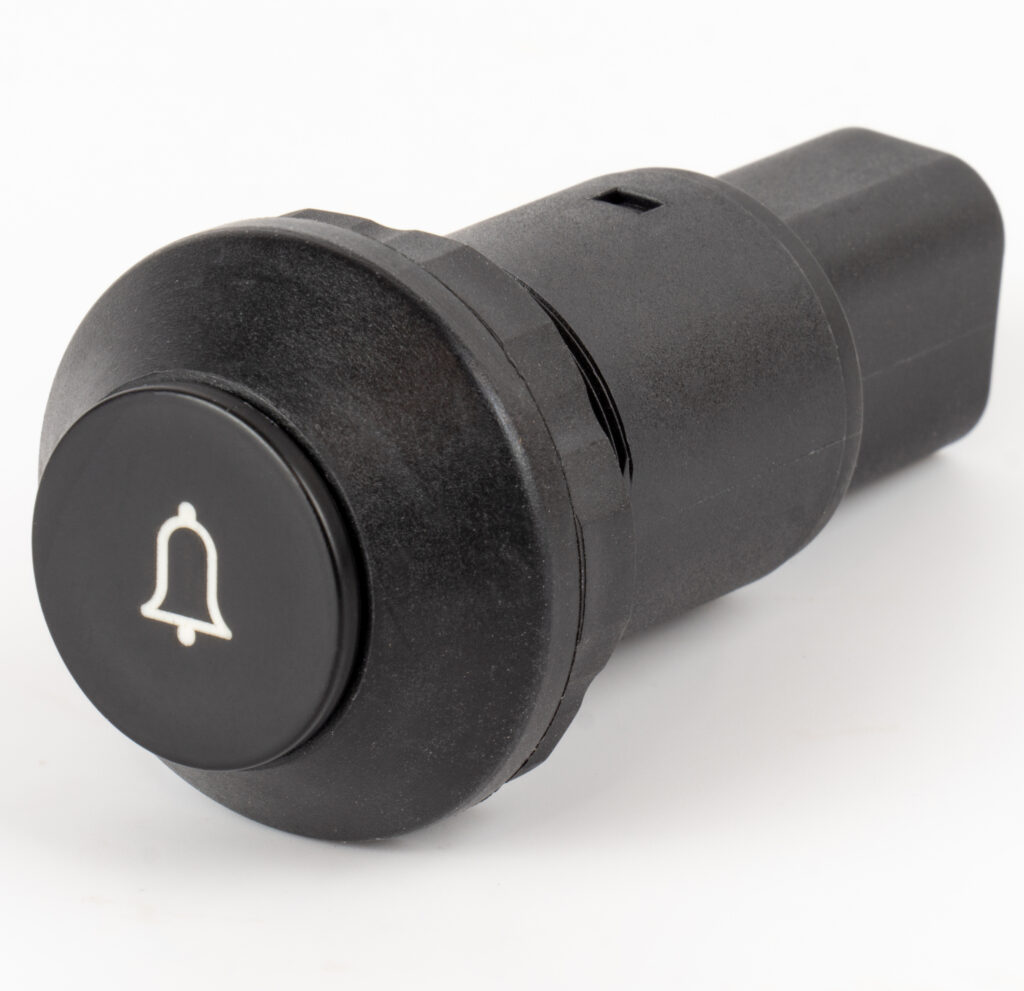

Push Button Switch – Low Current – with Deutsch plug, 4 pole

Application:

This robust push-button is designed for applications where unfavourable environmental influences prevail. For eample, the push-button switch is ideally suited for use in vehicle construction, e.g. in hydraulic control systems. The switching element, which is completely separated from the mechanics, meets the high protection class if IP67 and resists dust, dirt and humidity.

Variants:

A variety of colours and and symbols are available, as well as the option of LED spot illumination. Electrical connection via flat, Deuzsch, AMP Superseal plugs is possible. Other symbols and plugs on request.

Description

  • Long endurance due to magnetic actuation principle
  • Wear-free reed contacts for low switching currents
  • Designed for harsh operating conditions, high protection class IP67 electronic
  • Various button colours and different symbols to match the application
  • Different plug variants for a wide range of applications
  • For visual orientation, the button can be illuminated with a central LED ambedded in the actuating cap

Documents & downloads

Technical SpecificationDrawingActuator Cap - Colour and SymbolsPush Button Switch - Circuit diagramPush Button Switch - Mechanical Design - with Deutsch plug, 4 pole
