OTTO Controls trim switch T5 series mini

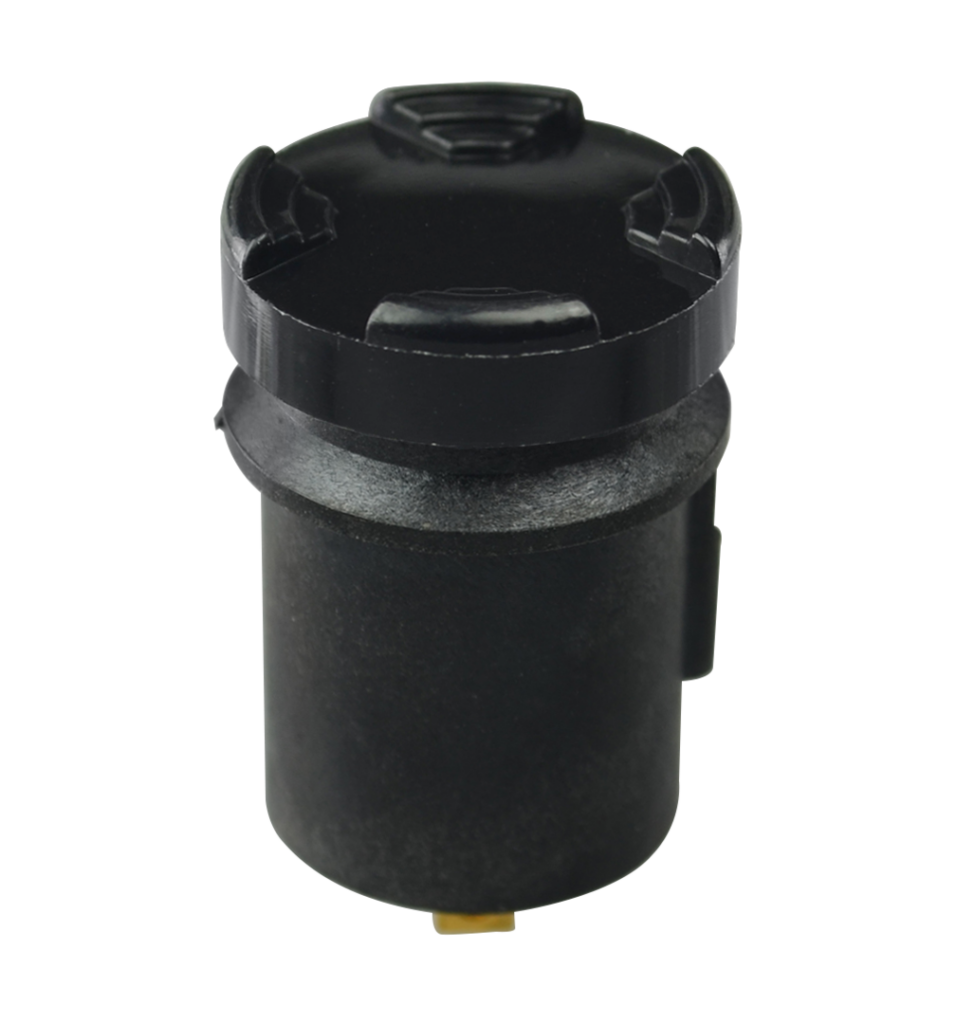

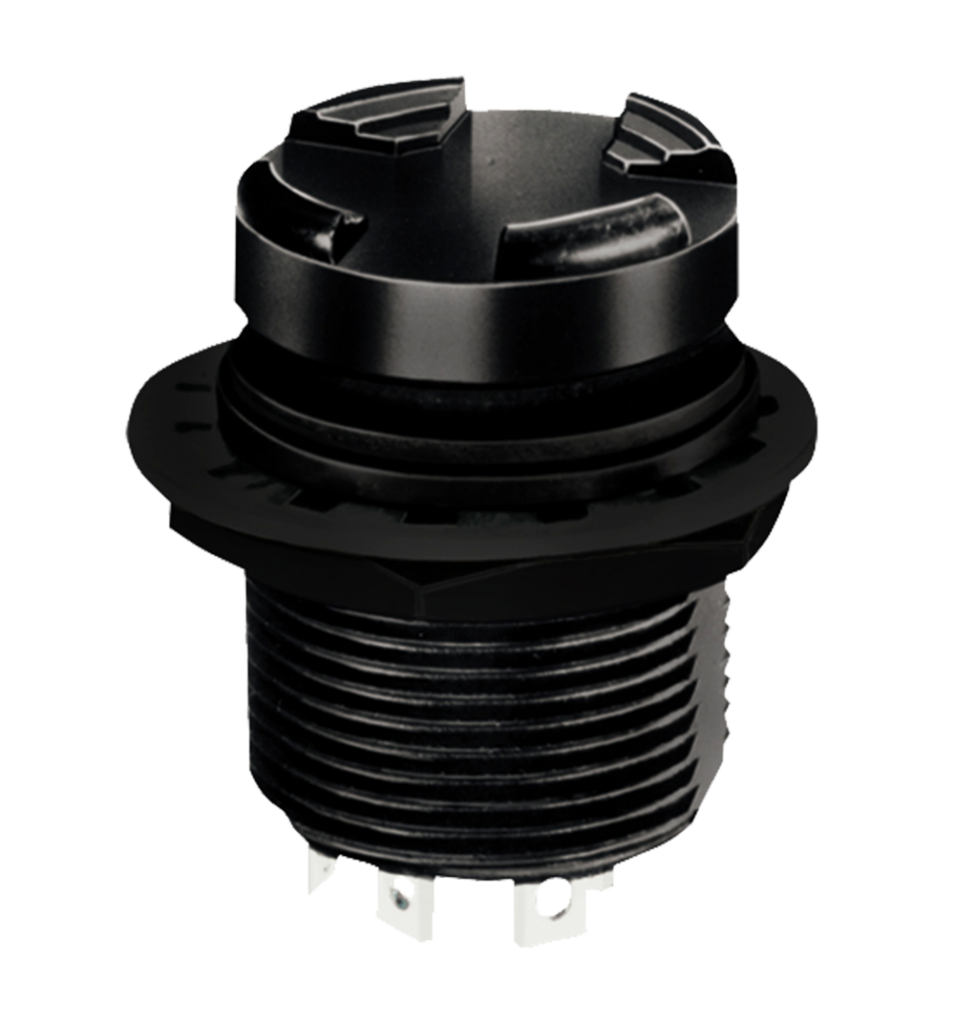

The T5 Mini Trim is a single pole, 5 throw Center off momentary contact (self return to center off) switch. Numerous button styles are available on both the Commercial and Military grade switch versions. Mini Trims are typically press fit into control grips or panel mounted using versions with an 11/16” threaded case. Mini Trims are also available with multiple sealing levels to fit all applications.


  • 4 way plus center pushbutton
  • Commercial & Military grade available
  • Variety of button style
  • Standard & low level switching
  • Dusttight to IP64 or Watertight to IP68S or MIL-PRF-8805 Design 3
  • Press fit or threaded case styles

Documents & downloads

Data sheet T4-T5 Large TrimData sheet T5 Mini TrimT5 button stylest5-mini-trim-button-stylesStandard Switch GuideTrim-Switch Overview
