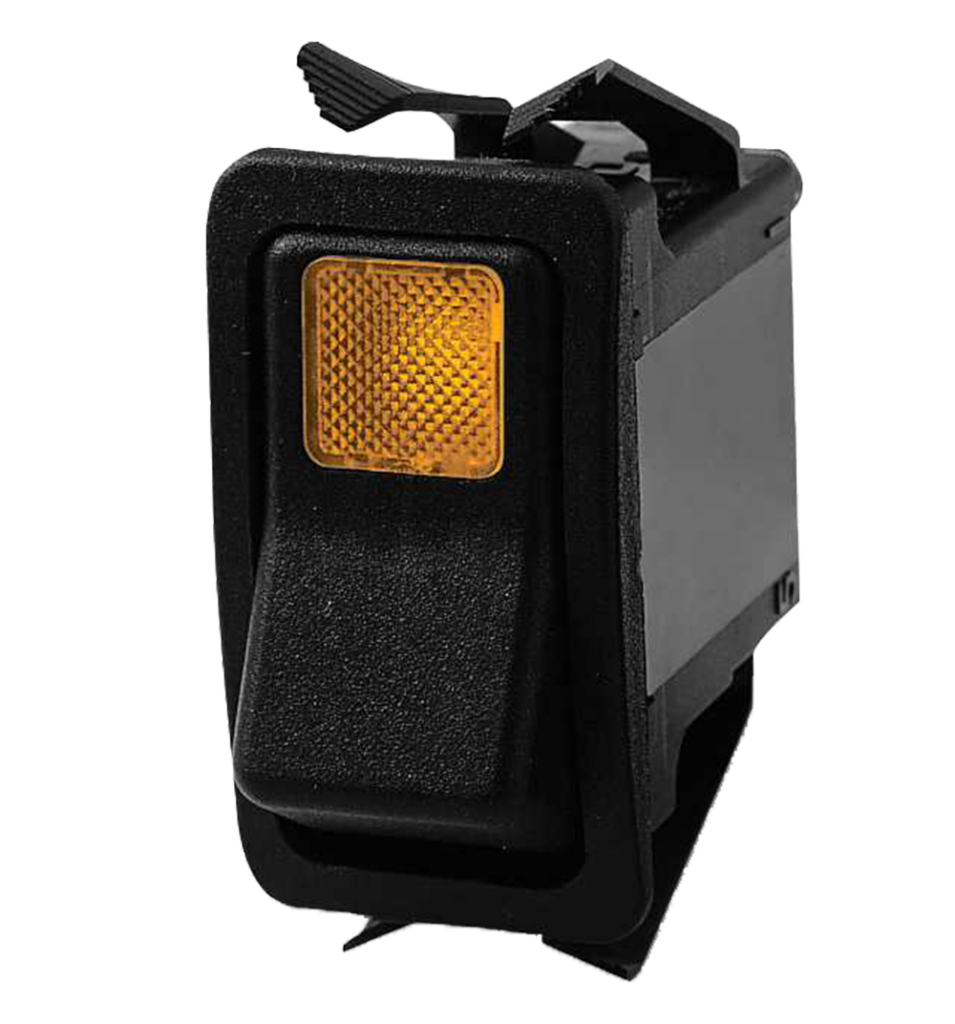

OTTO Controls rocker switch K3 series sealed/illuminated

Sealed to IP68S and IP69K, the OTTO K3 rocker switch is a quality, precision switch designed to comply with standards established for appliance, marine (ignition protection) and off-road vehicles along with other demanding applications where rugged rocker switches are required.

K3 sealed rocker switches snap into industry-standard panel cutouts. Choose illuminated and printed legends, thru-panel drain option and switching compatibility from logic level to 20 amps.

The K3 offers a choice of LED, incandescent and neon illumination. Legends can be stamped onto a non-illuminated button, stamped onto an illuminated lens or laser etched into the lens and backlit.

Available in standard and logic level contact ratings, the K3 rockers will fit a wide range of applications. Expect a minimum of 25,000 cycles at a full rated load of 20 amps resistive or 15 amps inductive. 100,000 cycles mechanical. A full complement of switch operation is available including momentary and maintained action in 2 or 3-position switches in SPST, SPDT, SPTT, DPST and DPDT circuit arrangements.

OTTO can provide custom colors upon request. Value-added assemblies with wire leads are also available. Please consult the factory for assistance.

Description

  • Sealed watertight per IP68S and IP69K
  • Snap-in panel mounting into industry standard panel cutout
  • Optional panel seal gasket
  • Thru-panel drain option
  • LED, neon & incandescent lighting
  • 0.250” Quick Connect terminals
  • Optional one-piece connector
  • Optional terminal barriers
  • Low level up to 20 amp switch
  • Configurable Single Pole Triple Throw (SPTT) with external jumpers
  • RoHS compliant
