OTTO Controls basic switch B5-7 series miniature

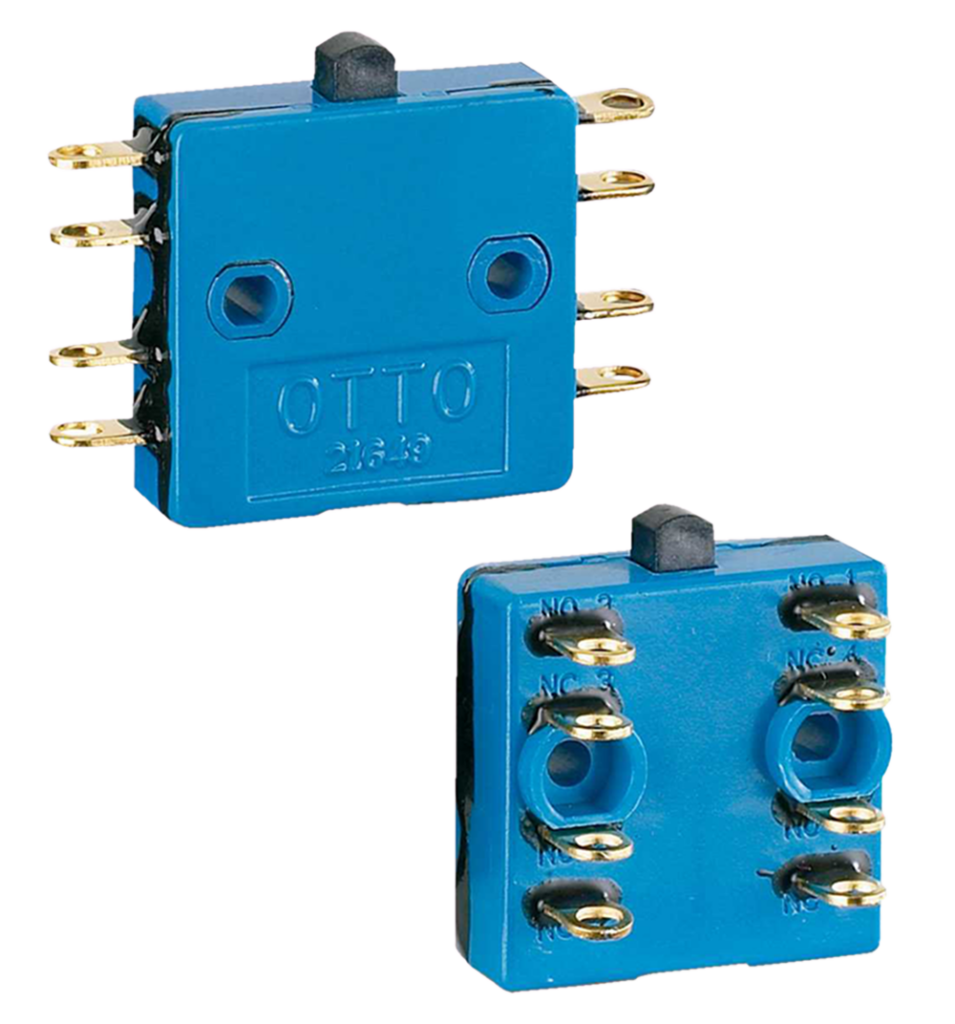

Two switches in one case! The B5-7 series basic switches are miniature in size but feature up to 10 amps switching capability of 100,000 cycles. The molded housing is rugged and structurally stable. The terminals are sealed against solder flux entering the switch and are bright acid tin plate brass for excellent solderability. B5-71 has end terminals; B5-72 has front terminals.


  • Double pole, 4-circuit
  • Up to 10 amps switching capability
  • Simultaneity of both poles to within 0.004”
  • Button accepts actuation directly from cam
  • Choice of end or front terminals
  • RoHS compliant

Documents & downloads

Data sheet B5-7Standard Switch GuideBasic Switches Overview
