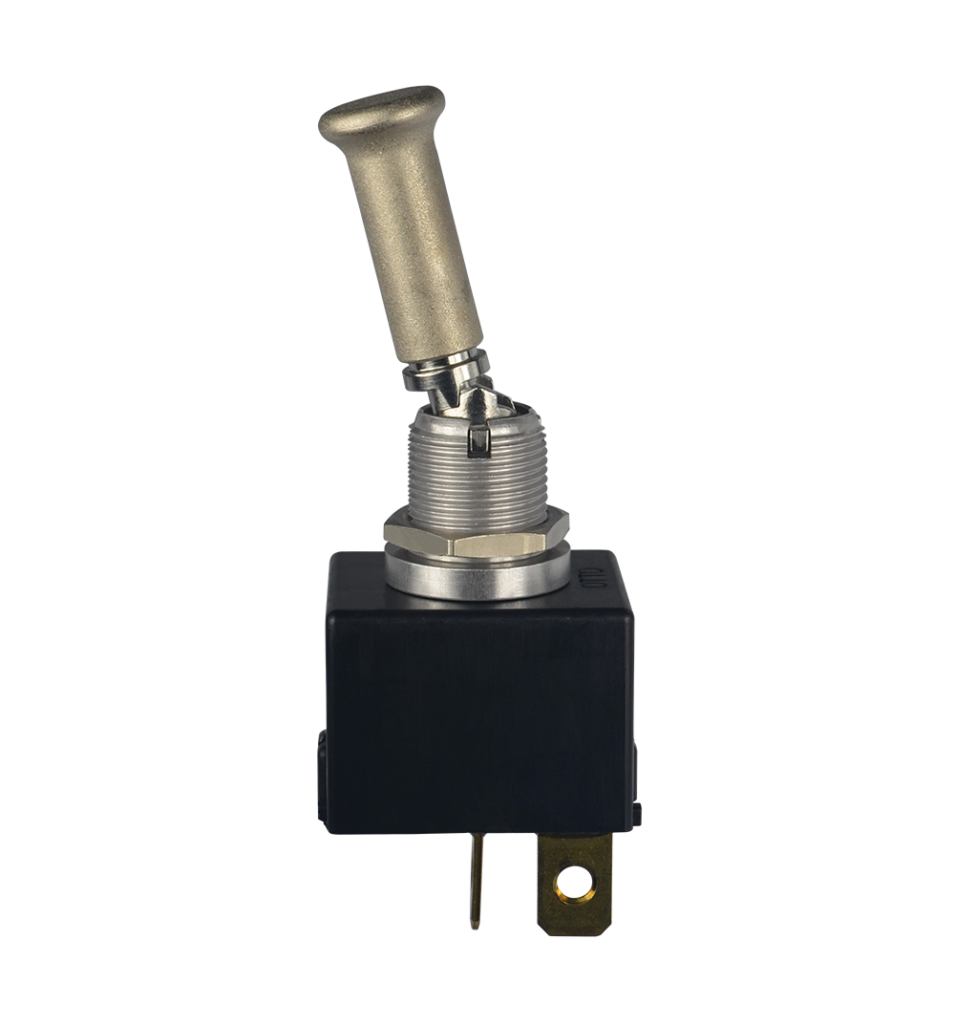

OTTO Controls toggle switch T7 series sealed

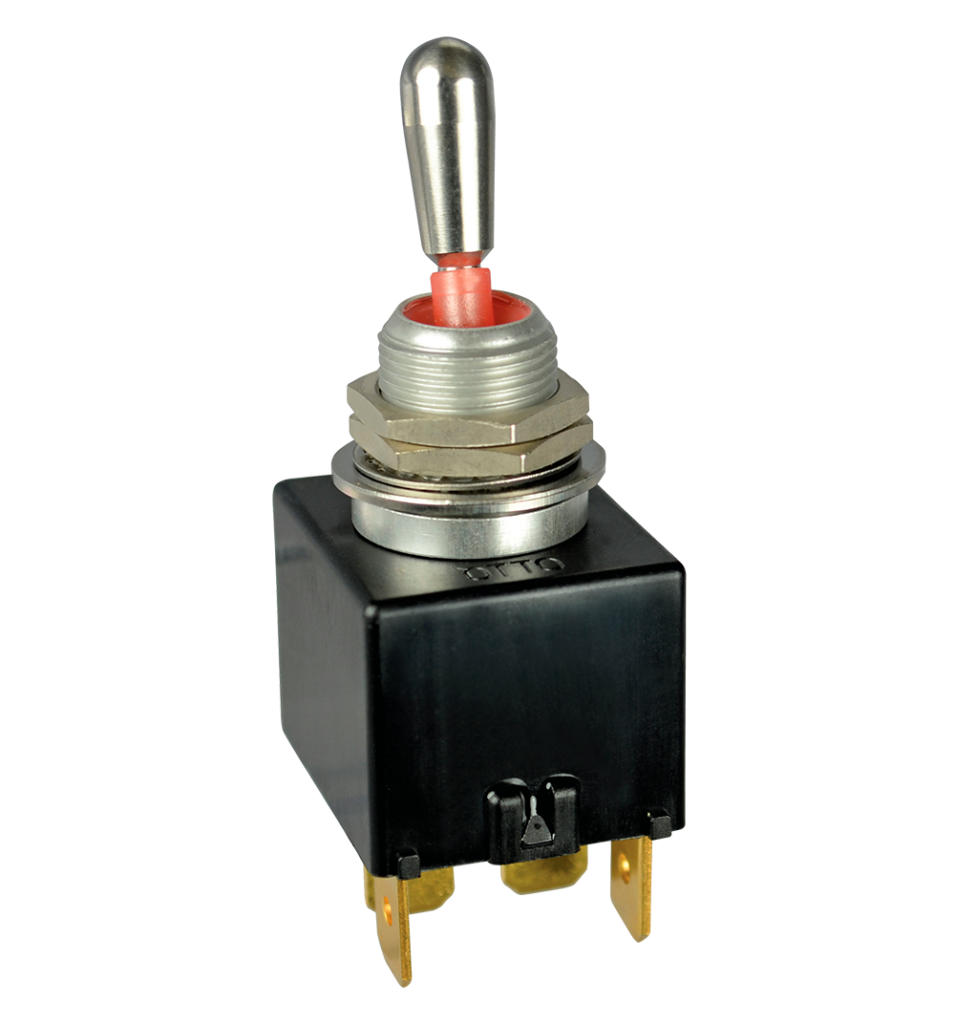

These toggle switches are rugged, high performance sealed switches designed for use under severe conditions found in heavy equipment, industrial control, marine and appliance applications. The T7 series is sealed to both IP68S and IP69K. OTTO’s front panel seal is accomplished with an O-ring under the bat handle. However, now a secondary visible bushing seal is offered as an option.

T7 toggles are offered in single and double pole configurations. A variety of models are offered to handle power levels to 16 amps, 0.5HP and logic level electronic switching applications. These toggles feature positive detent action for safe switching operation. In conjunction with the unique OTTO snap-action switch mechanism, the T7 offers non-teasible contact transfer. High contact pressure and superior contact wiping action of the OTTO design makes the T7 an excellent choice for switching loads from logic level up to 16 amps.

Mounting hardware provided includes two hex nuts, one lock washer and one keyway washer. An optional panel seal is available, P/N 710196, MIL. P/N M5423/16-01.


  • Up to 16A
  • IP68
  • Sealed to IP68S and IP69K
  • Switches up to 16 amps
  • Withstands extreme shock & vibration
  • Positive detent, non-teasible contact transfer
  • 2 & 3-position, momentary & maintained action
  • Choice of terminal styles
  • UL recognized & CSA certified
  • Black matte finish available. Contact factory.
  • RoHS compliant

Documents & downloads

Data sheet T7Standard Switch GuideToggle Switches Overview
