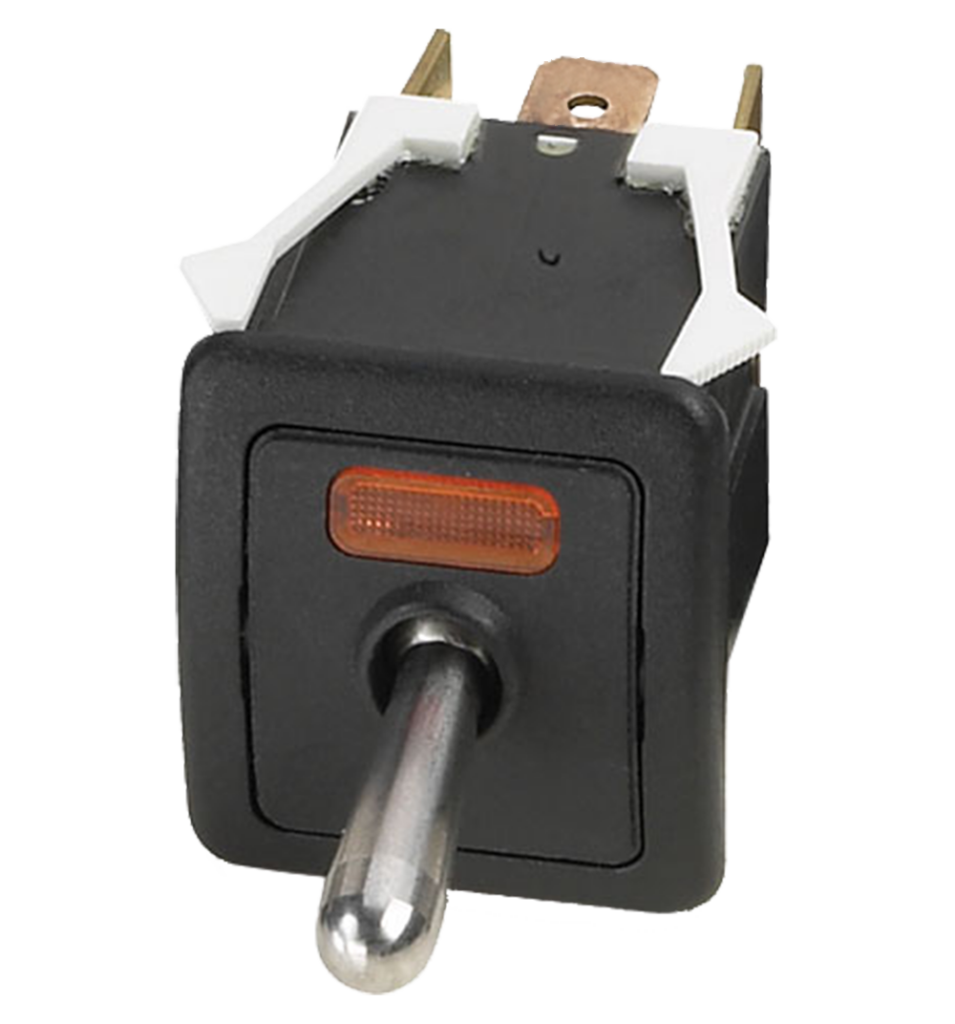

OTTO Controls rocker switch K4 series snap-in toggle

The K4 series snap-in toggle switches are rugged, high performance sealed switches designed for use under severe conditions found in marine, appliance, heavy equipment and industrial control applications. They are totally sealed so the switch can withstand direct water spray and submersion, even during operation. Sealed to IP68S with an optional panel seal available, the K4 is also sealed to IP69K.

The K4 series is offered in single and double pole configurations. Toggle action includes 2 and 3-position, momentary and maintained operation in a combination of 13 variations. Mounting is simple and quick; snaps into panel from the front. The OTTO snap-in design supports a variety of panel thicknesses with just one cutout size specified.

Existing unsealed applications are easily upgraded to sealed functionality because the K series drops into existing panel cutouts. Choices of models are offered to handle current from 16 amps to logic level electronic switching levels.

Description

  • IP68
  • snap in case
  • LED available
  • Withstands direct water spray
  • Sealed to IP68S and IP69K
  • Fits industry standard panel openings for drop-in replacement of panel sealed & unsealed switches
  • Snap-in feature accommodates a wide range of panel cutouts
  • Switches up to 16 amps
  • UV & solvent resistant
  • Withstands extreme shock & vibration
  • Legends & illuminated function indicators available
  • 2 & 3-position, momentary, maintained action & center OFF
  • RoHS compliant

Documents & downloads

Data sheet K4Standard Switch GuideRocker Switches Overview
