OTTO Controls trim switch TK series tactile mini

The TK Mini Trim is a tactile, 4-way, logic level, momentary contact switch with a center pushbutton option designed to fit easily in grips and control panels. The TK’s shorter behind panel length is nearly 2/10” shorter than OTTO’s traditional T4-T Mini Trim allowing for increased functionality and efficiency in any application.

The TK offers three sealing level choices: unsealed, dusttight to IP64, or watertight to IP68S.

The TK is a tactile switch which offers a positive click action indicating circuit transfer to the operator and is ideal for grip applications in aircraft, off-road and material handling.

Description

  • Logic level, normally open
  • Shorter behind panel
  • Pushbutton option
  • 4-way or 4-way with pushbutton momentary toggle action
  • Positive click action
  • Panel sealed to IP64, IP68S or unsealed

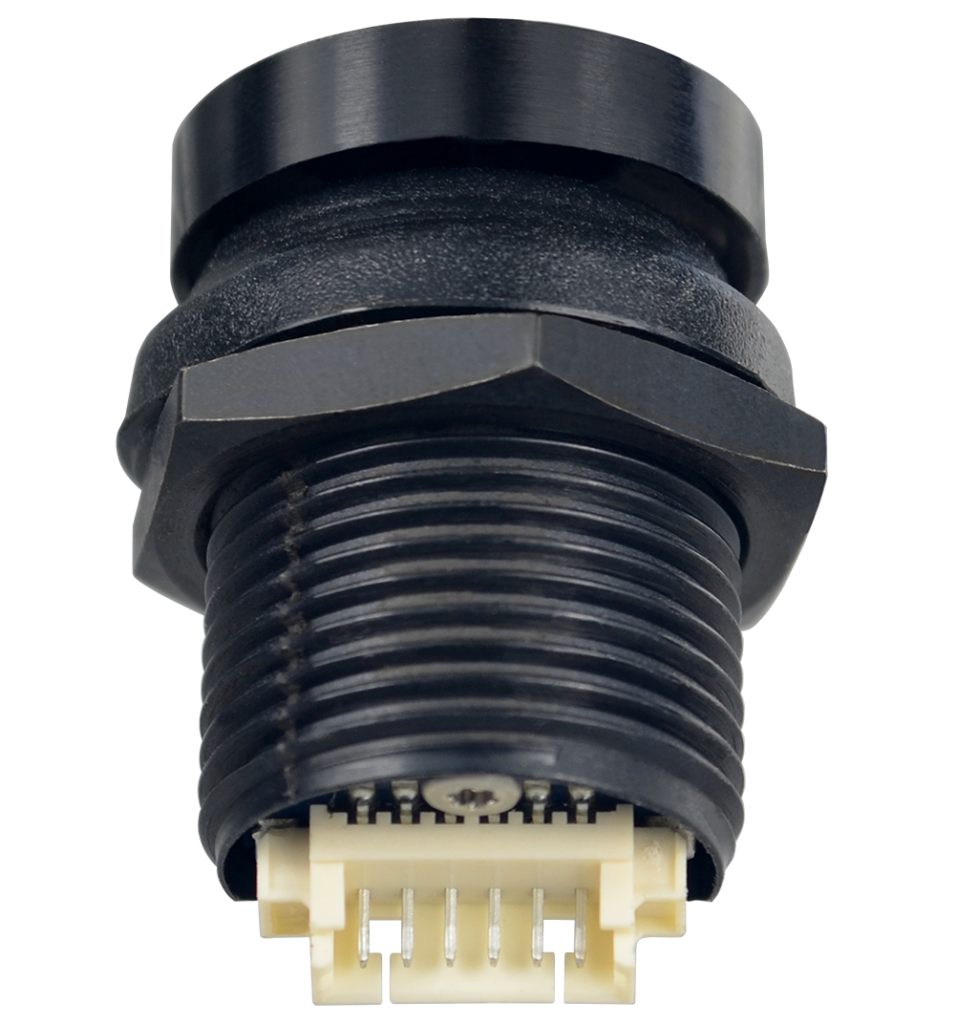

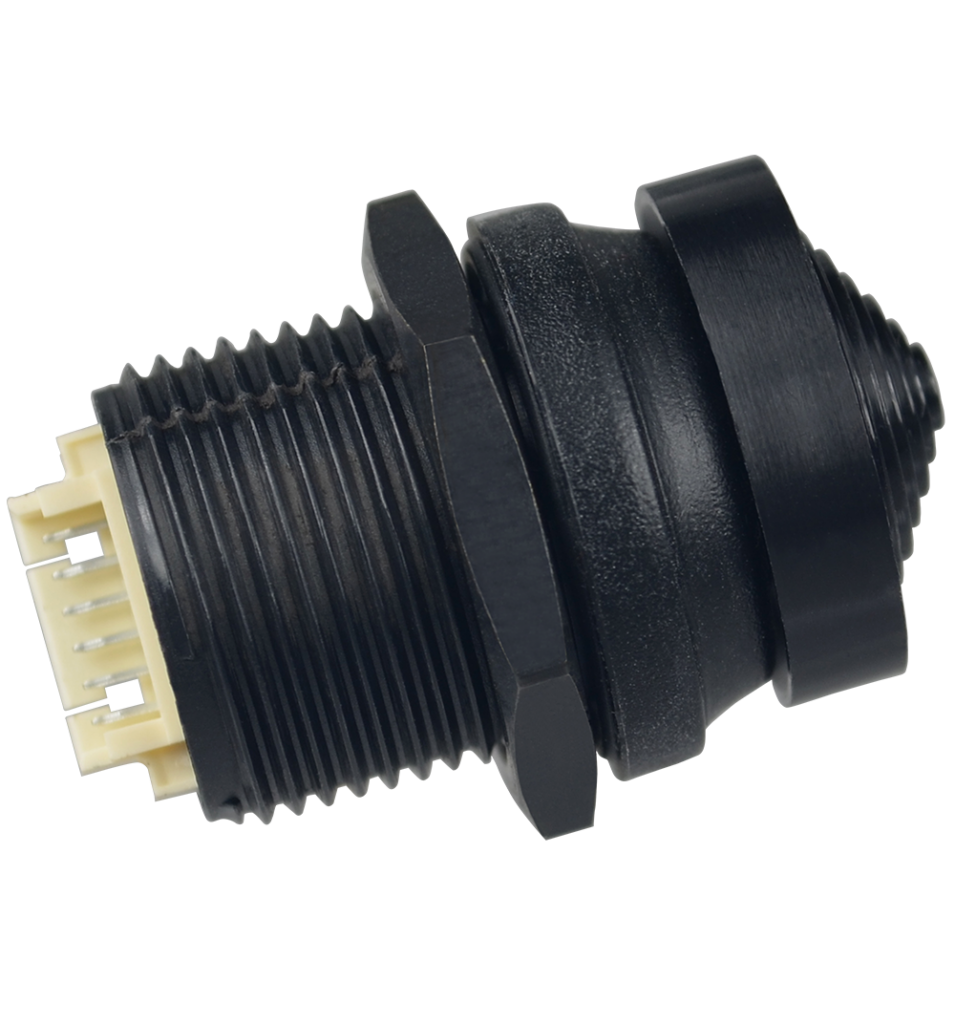

  • Wire leads or Molex connector
  • RoHS compliant

Documents & downloads

Data sheet TKTK Mini Trim Product BulletinTK-mini-trim-button-stylesTrim-Switch OverviewStandard Switch Guide
