OTTO Controls grip G2 commander

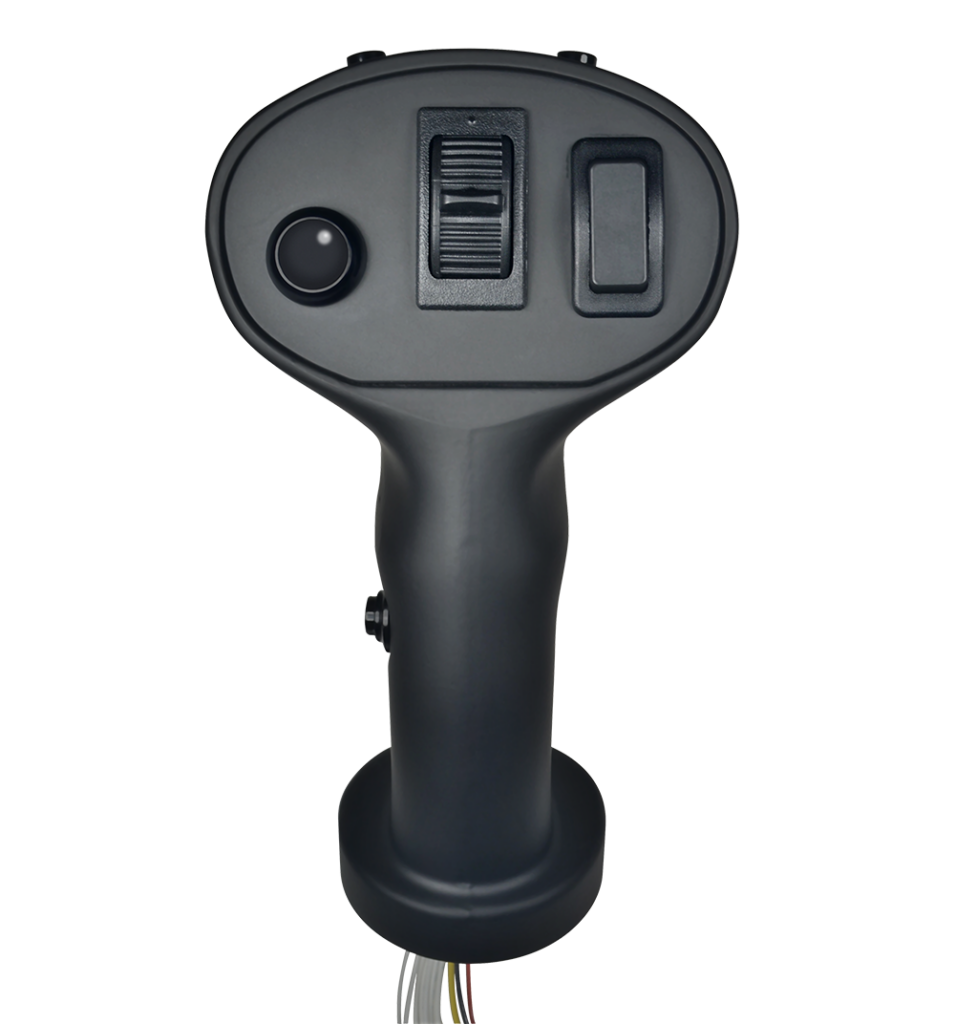

Cast from aluminum alloy, the G2 Commander Grip is a rugged industrial control grip suitable for demanding applications. The standard G2 Commander Grip offers nine different faceplate configurations that include pushbutton, toggle, transducer, split trim and Hall effect switches. Thousands of custom faceplate configurations are possible. The grip body has 10 possible switch location options.

The G2 has been enhanced with a USB option that enumerates as a standard human interface device (HID) joystick. No software drivers are required. The internal USB device supports up to 18 buttons and 8 analog inputs. It is easy to install, however some calibration may be needed.

The G2 Commander Grip is suitable for use in military, aerospace and industrial applications, and is the ideal solution where durability and dependability are required.

Description

  • USB output option
  • Standard design eliminates the need for tooling charges
  • Available as a fixed grip or can be mounted on an OTTO Hall effect joystick
  • Various mounting & termination options available
  • Nine standard faceplate configurations that include OTTO’s T3, T4 and T5 toggle switches, P4, P7 and P9 pushbutton switches, K1 rocker switches, SPT split trim switches, J2 transducer switches, FG flip guards, and HTWM, HTL and HTLT Hall effect switches
  • Thousands of custom faceplate configurations possible that can accommodate virtually all OTTO pushbutton, rocker, toggle, trim, transducer and thumbwheel switches
  • Operator presence and trigger options
  • Tested to withstand a 265 lb. load
  • Grip sealed to IP68S (subject to change based on switch choice)

Documents & downloads

Data sheet G2 AerospaceData sheet G2 CommanderData sheet G2 FlightGrip GuideCommander-Grip-Product-Bulletin
